X79 6M motherboard LGA 2011 USB2.0 SATA3 Dual protocol m.2 support REG ECC memory and Xeon E5 processor DDR3 strong huananzhix79


  • EUR: 49.85€
  • GBP: £44.34

1505 in stock

SKU: 4000804468314 Category:



  • Brand Name: QIYIDA
  • Ports: USB 2.0
  • Ports: PCI-E 3.0
  • Ports: PS2
  • Ports: Ethernet
  • Ports: PCI-Express X1
  • Ports: M.2
  • Ports: SATA
  • Chipset: Intel X79
  • Socket Type: LGA 2011
  • Item Condition: New
  • Memory Type: DDR
  • Application: Desktop
  • CPU Type: Intel
  • Form Factor: CEB
  • Package: Yes
  • Model Number: X79 6m
  • Launch Date: 2013
  • Graphics Card Type: Non-Integrated
  • With CPU: No
  • Maximum Ram Capacity: 64 GB
  • Chipset Manufacturer: Intel
  • Form Factor: M ATX
  • Memory Bank: 4 DDR3 DIMM
CPU slot: LGA2011
Memory slot: 4*DDR3
Memory type supported: non-ecc/reg ecc/ecc(The server ram can’t work with the desktop ram, it has the compability problem.)
image card slot: 1*PCI-E X16 slot
Power connector: 1*8PIN 1*24PIN
Network card: Gigabit network card
Memory capacity: 64G
SATA interface: 1*SATA3.0/3*SATA2.0
USB interface: 6*USB2.0,Front USB 3.0*2
PS/2 interface: 1*PS/2 keyboard interface
Applicable type: desktop
Motherboard architecture:M ATX
Chipset series:X79/C602
CPU slot type: INTEL 2011
Support CPU type: E5 2011 V1,V2,C1,C2
Onboard sound card: Yes
image card: none
Package Contents:
1 x Motherboard
Note: 1:The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
            2:Please allow 1-3mm differs due to manual measurement.
            3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
            4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
            5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

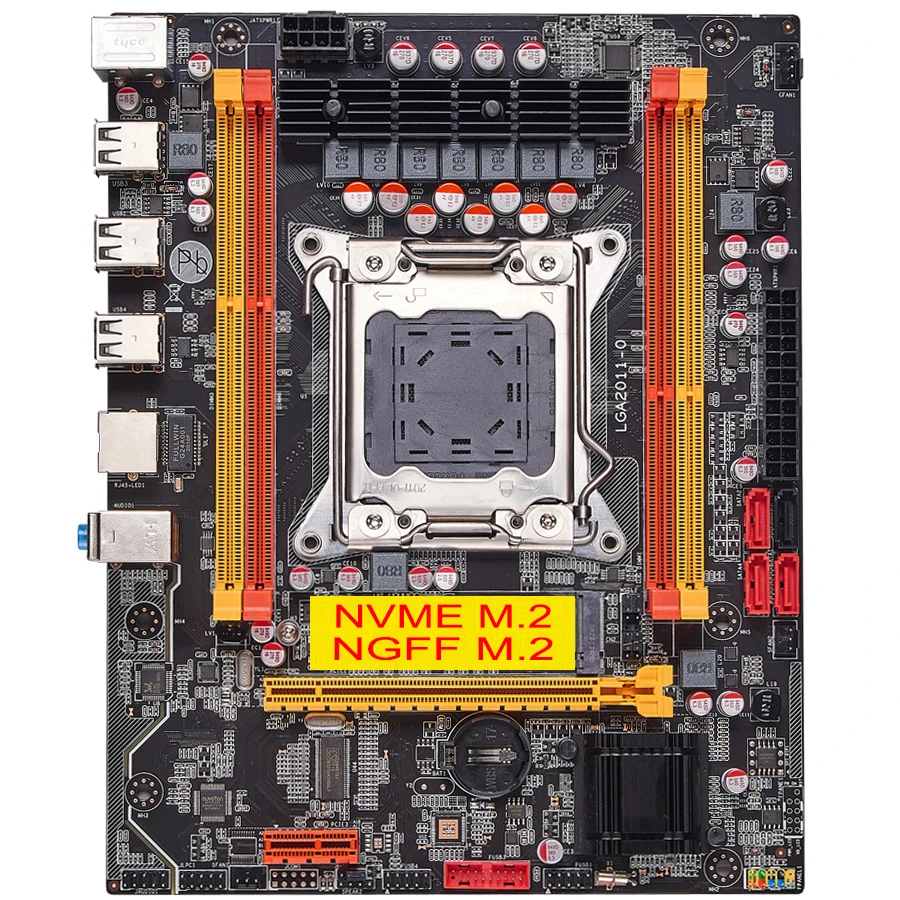

            6:We show photos of motherboard, pictures are for reference only, subject to our available products

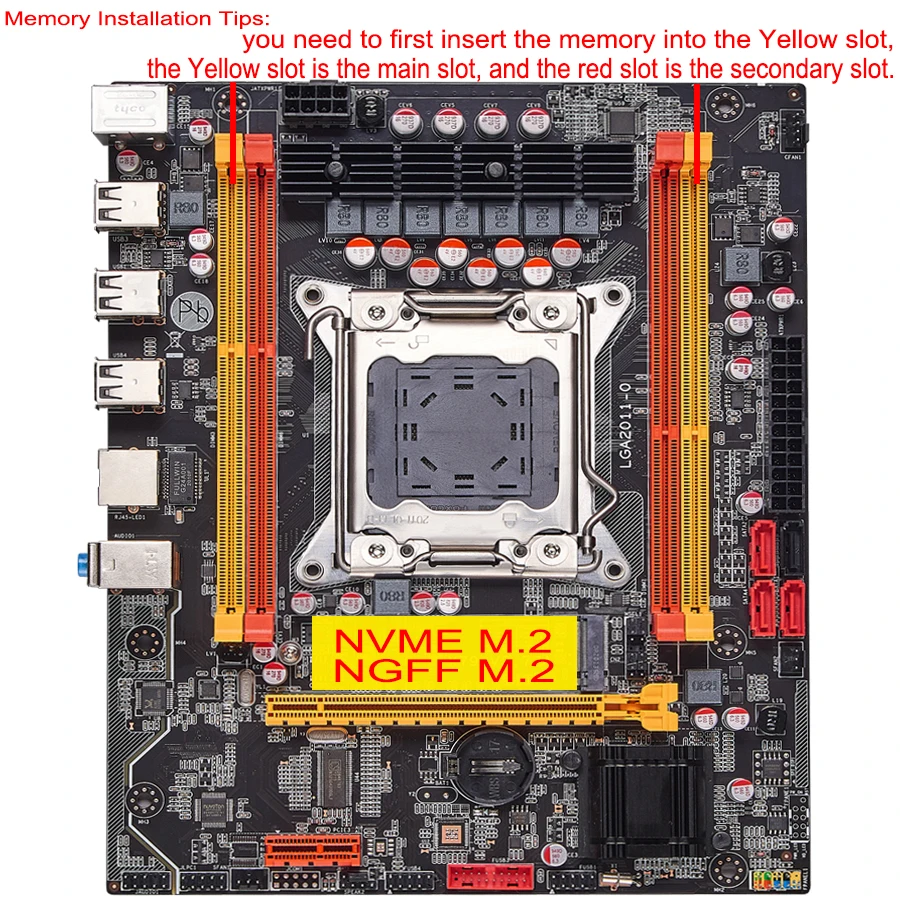

Memory Installation Tips: you need to insert the slot in the Yellow slot first, the yellow one is the main slot, and the red one is the sub slot.
